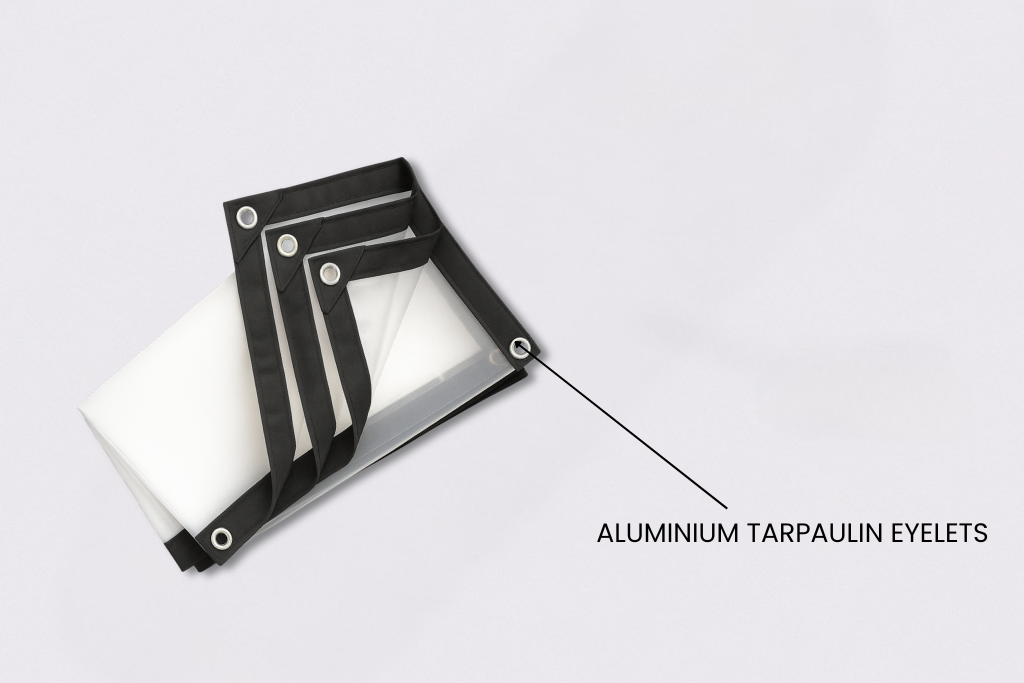

Aluminium Tarpaulin Eyelets

EYELETS

Aluminium Tarpaulin Eyelets Range

SR. NO.	PRODUCT NO.	PRODUCT NAME	FINISH	OUTSIDE DIAMETER	TOTAL LENGTH	HEAD DIA	PER PACKET QTY	WT PER PACKET IN GRAM
1	TA-AL-005	24 EYELETS	PLAIN	10	6	17.7	1000	252
2	TA-AL-006	24 WASHER	PLAIN	-	1	18	1000	141
3	TA-AL-010	28 EMB	PLAIN	12.5	6	23	20000
4	TA-AL-009	28 EYELET LIGHT	PLAIN	12.5	9	22.5	20000	9060
5	TA-AL-007	28 NO EYELET	PLAIN	12.5	7.2	23	20000	7920
6	TA-AL-014	28 NO EYELET	PLASTIC BLUE	15.8	7.5	25.4	20000
7	TA-AL-008	28 NO WASHER	PLAIN	-	2.2	23	20000	5080
8	TA-AL-015	28 NO WASHER	PLASTIC BLUE	-	2	25	20000
9	TA-AL-011	30 NO EYELET	PLAIN	15.6	7.6	26.8	500	292
10	TA-AL-012	30 NO WASHER FLAT	PLAIN	-	1.3	26.8	500	169
11	TA-AL-013	30 NO WASHER ROLLOVER	PLAIN	27	2.95	23.8	500	255
12	TA-AL-001	800 MED	PLAIN	8.5	6	14.4	2000	378
13	TA-AL-002	800 WASHER	PLAIN	-	1	16.2	2000	248
14	TA-AL-003	900 MED	PLAIN	10	6.7	16.4	1000	219
15	TA-AL-004	900 WASHER	PLAIN	-	1	18	1000	155

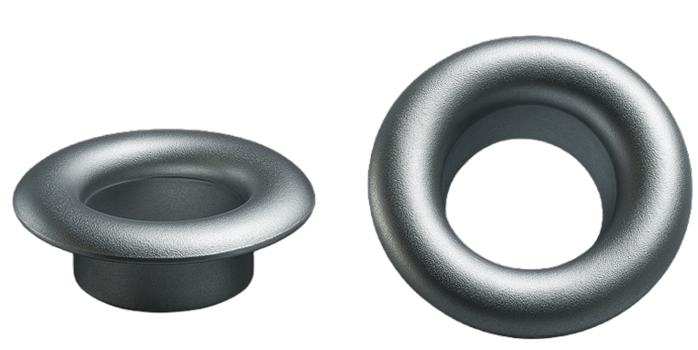

24 EYELETS

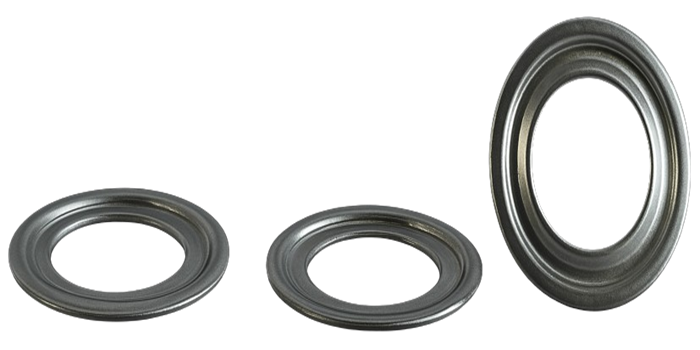

24 WASHER

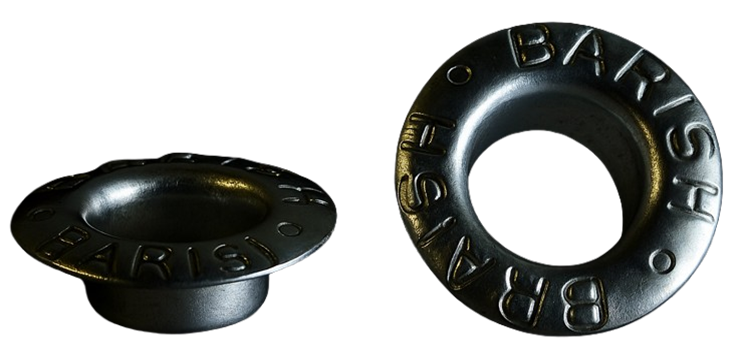

28 EMB

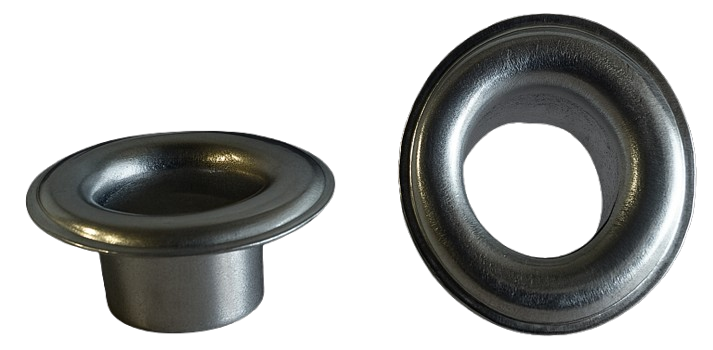

28 EYELET LIGHT

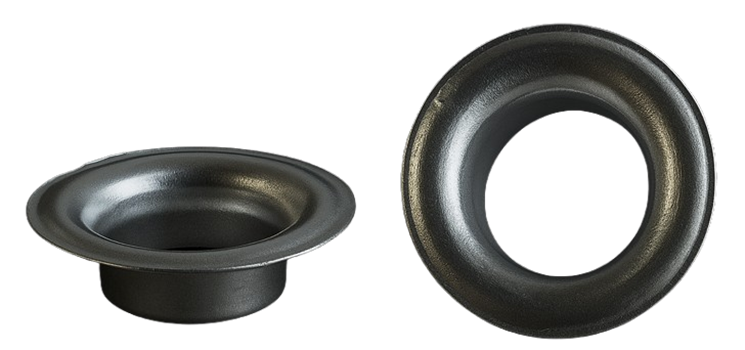

28 NO EYELET

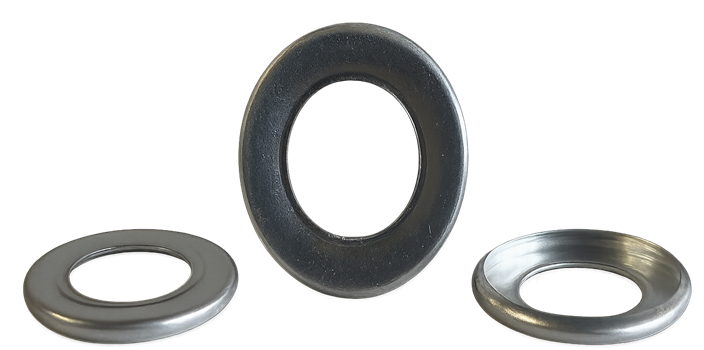

28 NO WASHER

30 NO EYELET

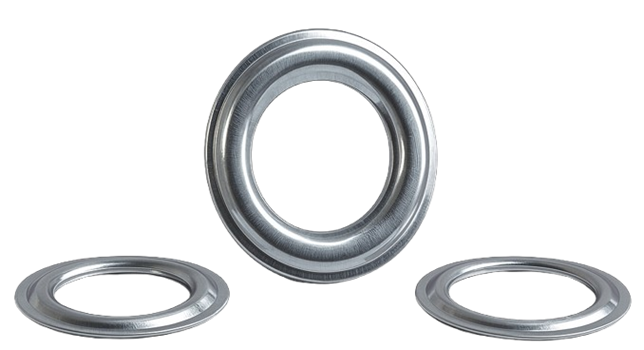

30 NO WASHER FLAT

30 NO WASHER ROLLOVER

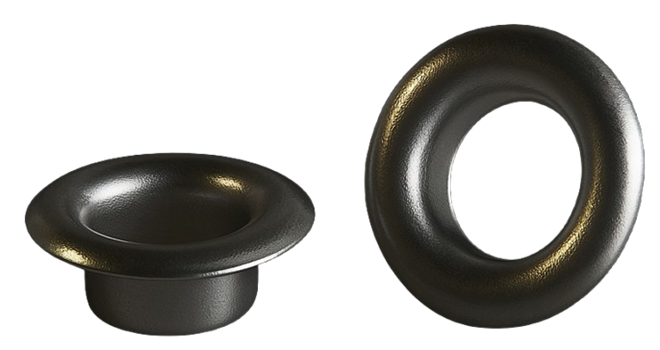

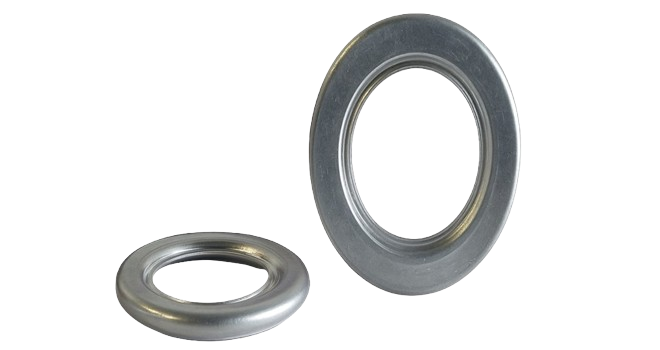

800 MED

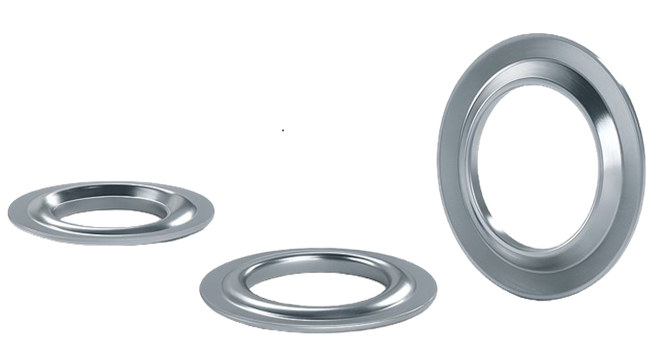

800 WASHER

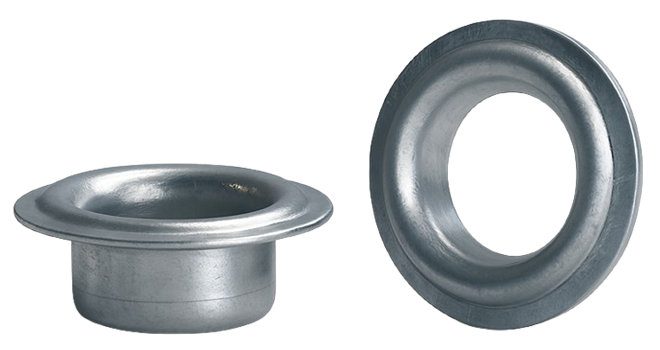

900 MED

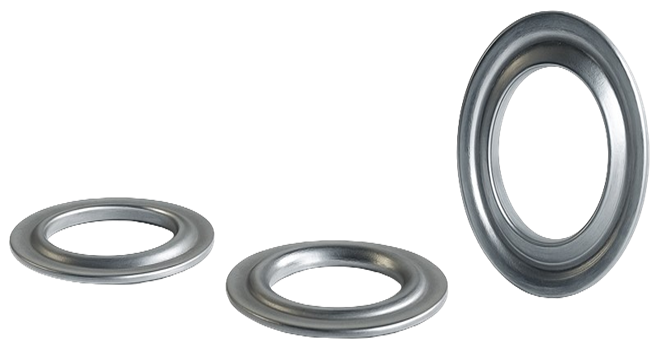

900 WASHER
